Description

Extra strong high door stop with shock absorber

Properties

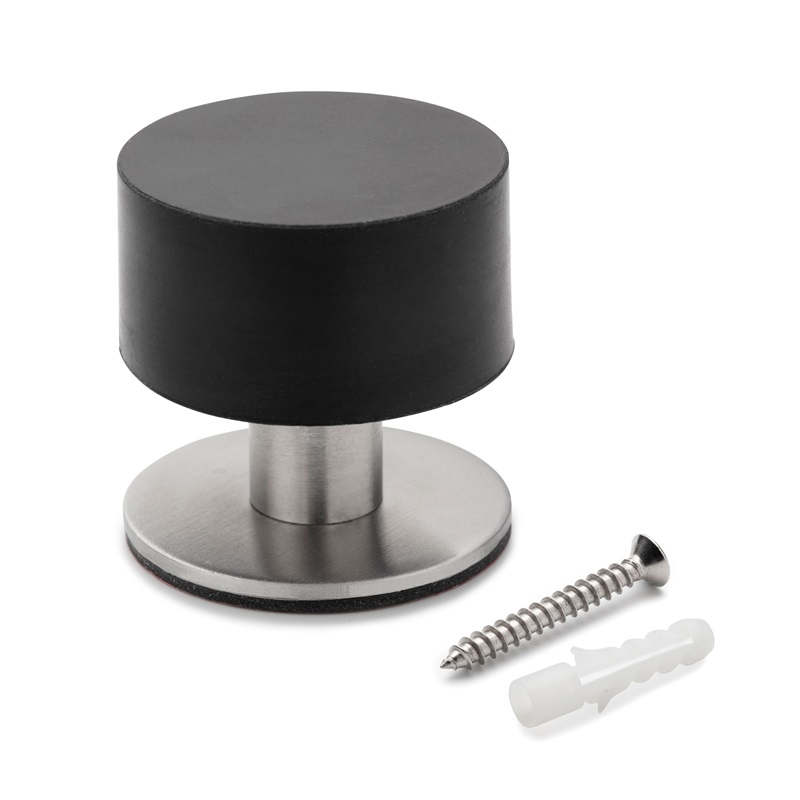

Stainless steel high stop with rubber buffer, fixing with extra strong adhesive or screw (both included).
Specially designed for heavy or large doors.
Made of AISI 304 stainless steel. High resistance and durability.
Double function, can be installed on the floor or on the wall.
Dimensions: Stopper 40x40x40mm / Cushioning block 21x40x40mm.

Fixation
Product measures (height x width x depth)
42x41x41

Logistic data

Applications

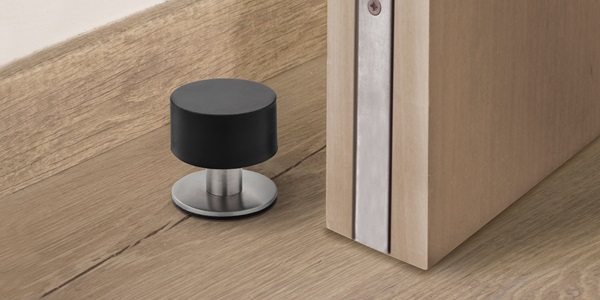

It dampens the impact of the door, protecting the wall.

Suitable for interior doors, solid or armoured.

Installation

FIXING WITH ADHESIVE:
Clean the surface to which the stop is to be fixed with an alcohol wipe. Then wipe with a dry cloth.
Remove the protective paper from the adhesive. Fix the stop in the desired position and press down firmly.

FIXING WITH SCREWS:
Mark the point where the stop is to be positioned.
Drill a hole with a 6 mm drill bit and insert the dowel.
Unscrew the upper part and screw the base of the stopper.
Once fixed, the upper part can be screwed on.

Tips and tricks

It is recommended that the door stop be set as far away from the hinges as possible.

The wall door stop can be placed at different heights, however the most common position is between 10 and 20 cm. from the floor approximately.
